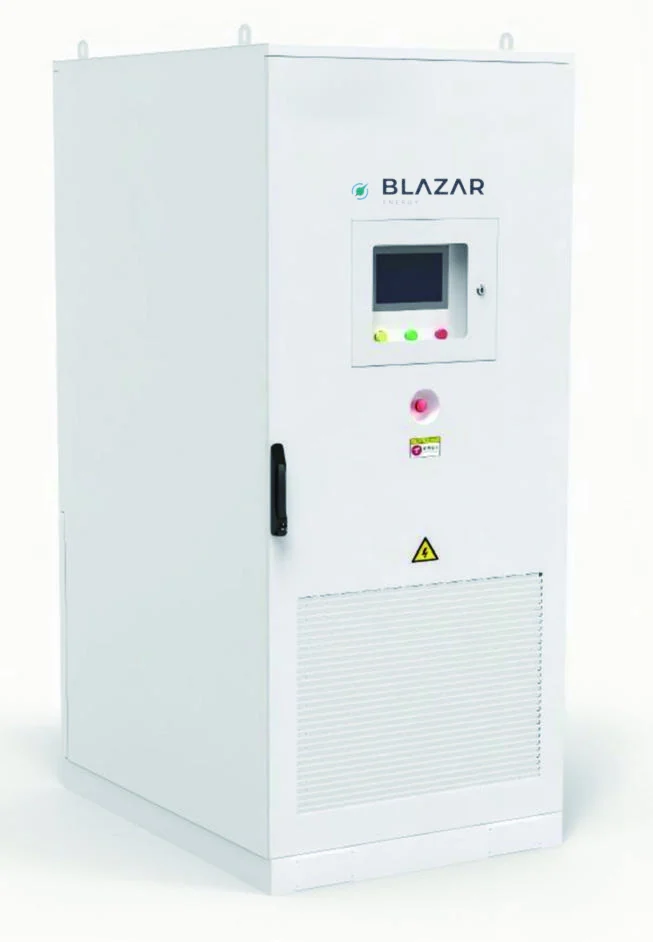

Wing 261
C&I energy storage cabinet
A 125 kW / 261 kWh liquid-cooled energy storage cabinet with an integrated bidirectional converter for industrial and commercial sites.
Why Wing 261
An all-in-one AC cabinet that combines five liquid-cooled LFP battery packs (1P260S, 832 V nominal), a 125 kW bidirectional converter and built-in BMS and EMS. It switches seamlessly between grid-connected and off-grid operation and outputs 340-400 V three-phase (3L/N/PE) at 50 Hz. It suits industrial sites, commercial centers, residential complexes and solar canopy EV charging.
Liquid cooling
Liquid cooling keeps the cell-to-cell temperature difference at or below 3 °C, supporting cycle life, operating stability and high power density operation.
High power, wide voltage, high efficiency
125 kW rated and 137.5 kW maximum output, 670-949 V battery voltage range and 340-400 V AC output for a range of grids and loads. Maximum efficiency is 98.6% and system efficiency is 88%.
Grid compliance
Designed to Chinese grid connection standards for energy storage, including GB/T 34120 and GB/T 36775, and tested to the IEC 61000 series for electromagnetic compatibility.
Remote management
WLAN, app, Wi-Fi, 4G, LAN and Bluetooth connectivity for cloud monitoring, strategy optimization and fault warnings.
Features
Battery system
Five liquid-cooled battery packs (1P52S each) connected in series for a 1P260S assembly with a nominal voltage of 832 V.
PCS unit
Integrated 125 kW bidirectional converter with seamless switching between grid-connected and off-grid operation.
Thermal management
Liquid circulation with an intelligent temperature control strategy for stable operation in all weather conditions.
Management system
Built-in BMS and EMS with multi-protocol communication and cloud management.
Applications
Technical Specifications
Open a section to see its details, or download the complete datasheet.
Standards & Certifications
Specifications are based on manufacturer test data and may change without notice. Standards and certifications refer to the manufacturer's test reports, available on request. The final configuration, performance and warranty terms are confirmed in each project proposal.
You May Also Consider

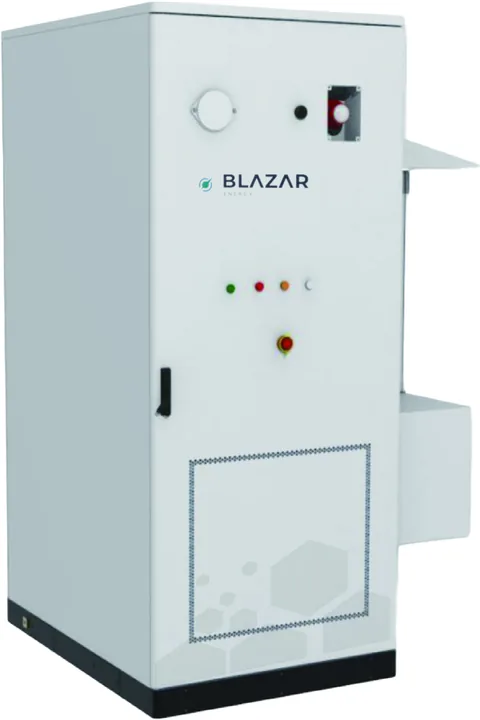

Commercial & industrialVast 209
Outdoor integrated cabinet
- Rated output power
- 50 kW
- Rated energy
- 209 kWh
- Rated voltage
- 665.6 VDC
- Cooling
- Liquid

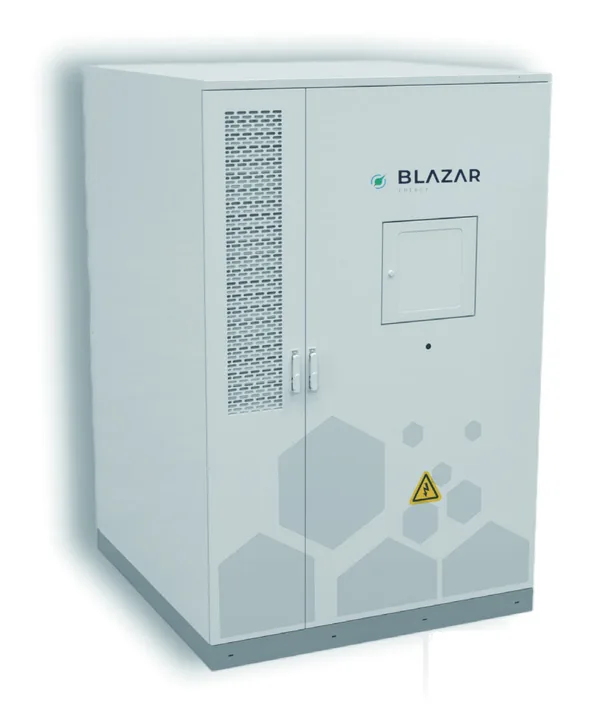

Commercial & industrialStar 215
Outdoor integrated cabinet
- Rated power
- 105 kW
- Rated energy
- 215 kWh
- Cycle life
- 6,000 cycles
- Cooling
- Liquid

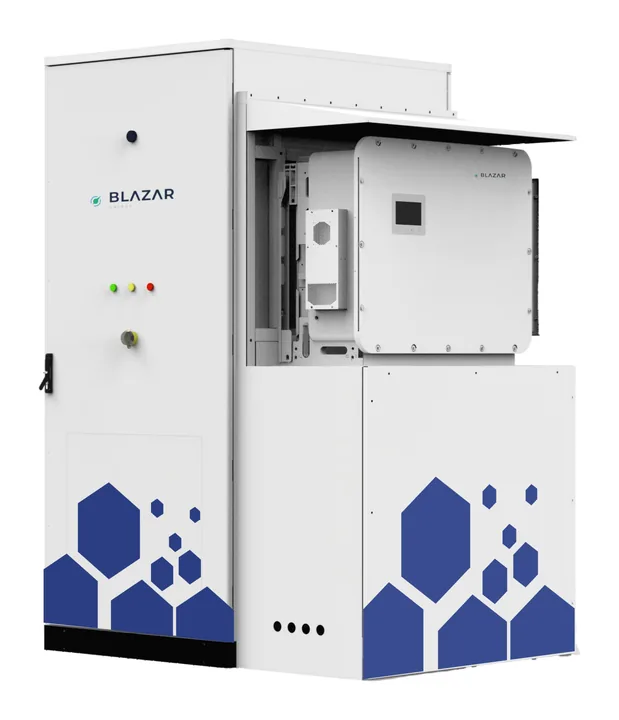

Commercial & industrialSwift 261
