Star 215

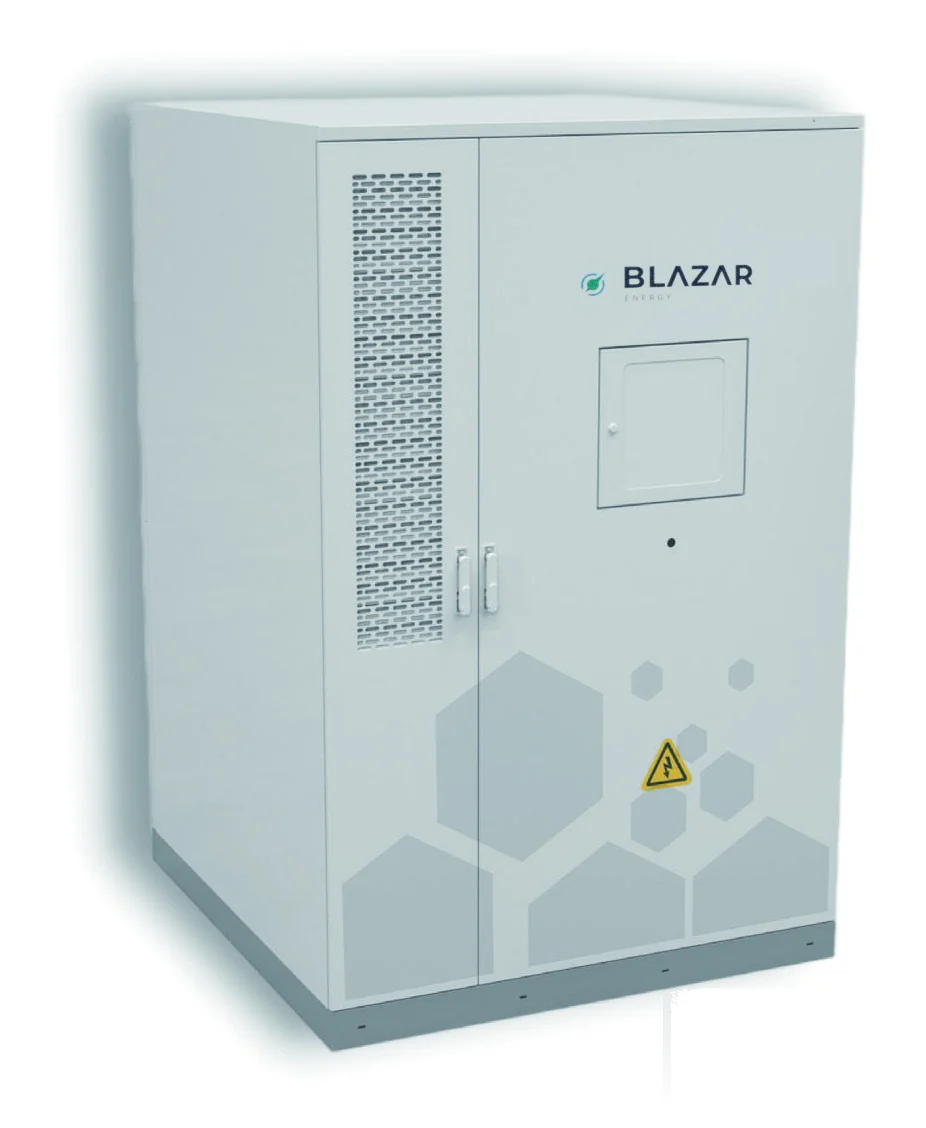

Outdoor integrated cabinet
A 105 kW / 215 kWh outdoor cabinet that integrates LFP batteries, PCS, liquid cooling and fire protection.
Why Star 215
Star 215 is an outdoor integrated cabinet that combines lithium iron phosphate batteries, a PCS, temperature control and fire protection in one enclosure of approximately 1.4 × 1.5 × 2.2 m. It is deployed outdoors without additional civil works and supports grid-connected and off-grid operation alongside photovoltaics and diesel generators. Multiple cabinets can be connected in parallel to reach MWh-level capacity.
All-in-one outdoor cabinet
Battery, PCS, temperature control and fire protection are integrated in one cabinet that installs outdoors without additional civil works. The compact footprint of approximately 1.4 × 1.5 × 2.2 m suits space-constrained sites.
Liquid-cooled batteries
Battery liquid cooling holds the cell temperature difference to ≤3 °C to support cycle life and stability. The specification table rates charging from 0 °C to 35 °C and discharging from -20 °C to 55 °C.
Modular expansion
Standardized cabinets connect in parallel to scale to MWh-level capacity, and on-site installation and commissioning take 3 to 5 days.
Features
Energy management
System efficiency of ≥88% under measured conditions, four-quadrant operation and seamless switching between charging and discharging. The integrated PCS supports grid-connected and off-grid modes and works with photovoltaics and diesel generators.
Layered safety
Lithium iron phosphate cells rated for 6,000 cycles at 90% DoD and 25 °C, a perfluorohexane automatic fire extinguishing system, IP65/IP54 protection and IEC 62619 certification.
Remote monitoring
Modbus over RS-485 or RJ-45 links the cabinet to energy management platforms, with operating status, battery data and fault warnings available on mobile and PC.
Applications
Technical Specifications
Open a section to see its details, or download the complete datasheet.
Standards & Certifications
Specifications are based on manufacturer test data and may change without notice. Standards and certifications refer to the manufacturer's test reports, available on request. The final configuration, performance and warranty terms are confirmed in each project proposal.
