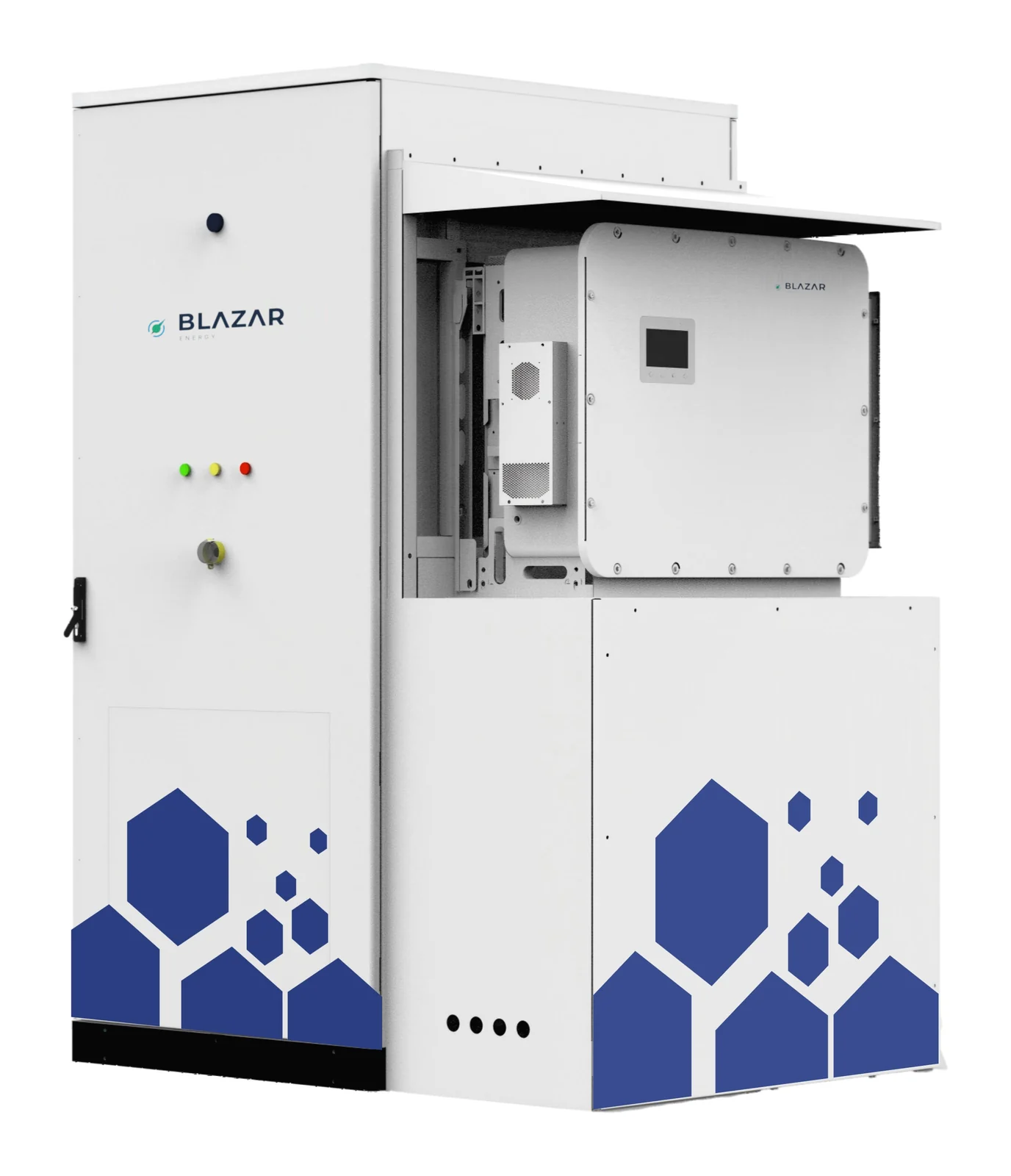

Swift 261
Hybrid energy storage cabinet
A 125 kW / 261 kWh outdoor cabinet that pairs a hybrid inverter with liquid-cooled LFP storage for solar sites.
Why Swift 261
Swift 261 is a hybrid energy storage system in an integrated outdoor cabinet, combining a 125 kW high-voltage hybrid inverter with liquid-cooled lithium iron phosphate batteries. It schedules photovoltaic, battery and grid power together and accepts up to 240 kW of photovoltaic input. The cabinet is offered in 156 kWh, 209 kWh and 261 kWh versions, and up to 10 units can operate in parallel, grid-connected or off-grid.
Integrated solar and storage
A 125 kW high-voltage hybrid inverter schedules photovoltaic, battery and grid power together, with support for up to 240 kW of photovoltaic input to raise on-site solar self-consumption.
Liquid-cooled temperature control
Battery liquid cooling holds the cell temperature difference to ≤3 °C, and the system is rated for more than 6,000 cycles. It operates from -30 °C to 50 °C, with derating above 45 °C.
Modular expansion
A standard cabinet design supports up to 10 units in parallel for MWh-level system capacity, with plug-and-play installation and quick on-site commissioning.
Features
Intelligent EMS control
Energy management with a 7-inch touchscreen coordinates photovoltaic, battery and grid operation.
Safe and all-climate ready
Certified battery with liquid cooling, dual fire suppression (Novec 1230 gas plus water-based extinguishing) and operation from -30 °C to 50 °C.
Modular and quick deployment
Plug-and-play cabinets scale to MWh level with up to 10 units in parallel, in grid-connected or off-grid operation.
Applications
Technical Specifications
Open a section to see its details, or download the complete datasheet.
Standards & Certifications
Specifications are based on manufacturer test data and may change without notice. Standards and certifications refer to the manufacturer's test reports, available on request. The final configuration, performance and warranty terms are confirmed in each project proposal.
You May Also Consider
Commercial & industrialVast 209
Outdoor integrated cabinet
- Rated output power
- 50 kW
- Rated energy
- 209 kWh
- Rated voltage
- 665.6 VDC
- Cooling
- Liquid
Commercial & industrialStar 215
Outdoor integrated cabinet
- Rated power
- 105 kW
- Rated energy
- 215 kWh
- Cycle life
- 6,000 cycles
- Cooling
- Liquid

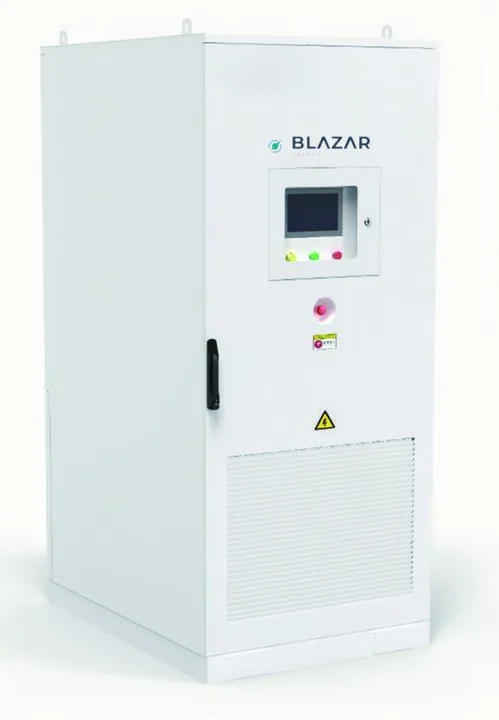

Commercial & industrialWing 261
