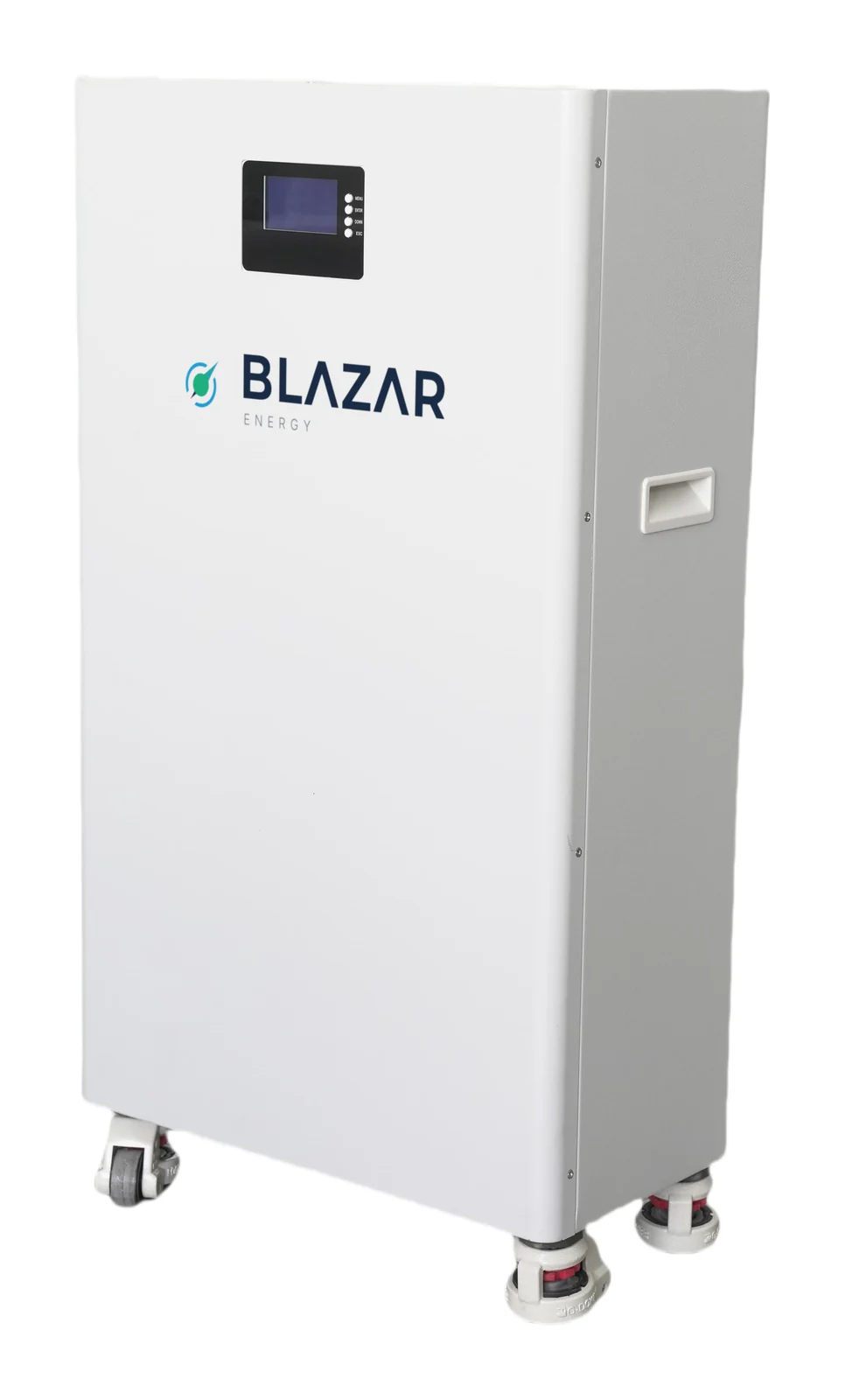

Home 16
Floor-standing home battery
A 51.2 V, 314 Ah LiFePO4 battery that stores 16.07 kWh for residential solar systems.
Why Home 16
Home 16 is an indoor-rated, floor-standing low-voltage battery built on LiFePO4 cells, with 16.07 kWh of nominal energy and 10.24 kW of nominal output power. In the reference layout it connects to a hybrid inverter together with solar panels, household loads and the grid. Up to 50 units can be connected in parallel, and the integrated BMS communicates over RS-485, CAN or RS-232.
Long cycle life
Rated for at least 8,000 cycles at 80% depth of discharge and 25 °C, with a recommended state-of-charge window of 10% to 90% for best cycle life.
BMS management
An integrated battery management system supervises the 51.2 V pack and exchanges data with the inverter over RS-485, CAN or RS-232.
Parallel expansion
Up to 50 units can be connected in parallel to scale storage beyond a single 16.07 kWh battery.
Features
Full protection
Cell-level overcharge protection at 3.70 V (±0.025 V), over-discharge protection at 2.70 V (±0.080 V) and short-circuit protection.
Safe chemistry
LiFePO4 cells in an SPCC steel case, rated for indoor use with charging from 0 °C to +55 °C and discharging from -20 °C to +55 °C.
Easy installation
A floor-standing unit measuring 800 × 500 × 260 mm (H × W × D) and weighing 125 kg, designed to sit beside the inverter in a home solar system.
Applications
Technical Specifications
Open a section to see its details, or download the complete datasheet.
Standards & Certifications
Specifications are based on manufacturer test data and may change without notice. Standards and certifications refer to the manufacturer's test reports, available on request. The final configuration, performance and warranty terms are confirmed in each project proposal.
