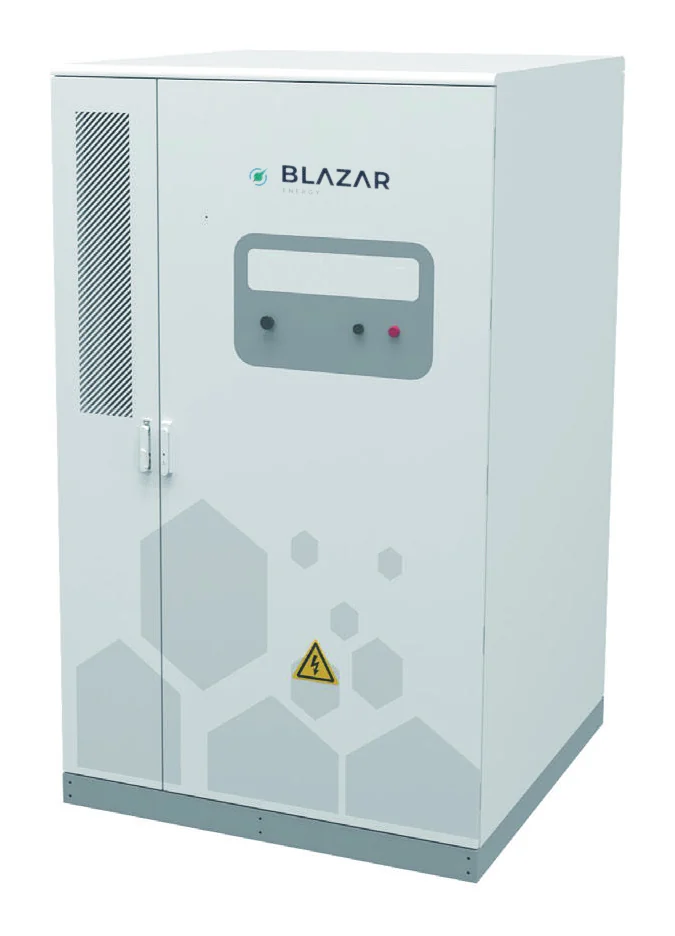

Agile 418
C&I outdoor storage cabinet
A 215 kW / 418 kWh outdoor LFP energy storage cabinet for small and medium-sized commercial and industrial sites.
Why Agile 418
An integrated outdoor cabinet rated 215 kW / 418 kWh, built on lithium iron phosphate cells with BMS, thermal management and fire protection inside the enclosure. It supports a full discharge in 2 hours at a system efficiency of at least 94%, and several units can be paralleled for projects from 500 kWh to 2 MWh. It targets small and medium-sized factories, commercial buildings and charging stations, and can operate alongside PV, wind and diesel generation in microgrids.
Capacity and efficiency
418 kWh of storage with 100% discharge in 2 hours. A DC-side design reaches a system efficiency of at least 94%, reducing energy losses.
Modular, integrated cabinet
Outdoor cabinet with integrated BMS, temperature control and fire protection. Multiple units can be connected in parallel to cover projects from 500 kWh to 2 MWh, with room for later expansion.
Safety and service life
Lithium iron phosphate cells rated for at least 6,000 cycles, with an 8-year warranty. Three-level fire protection (aerosol, perfluorohexane and temperature-control linkage) complies with IEC 62619.
Features
Intelligent energy management
Coordinates with PV, wind and diesel generators for optimized microgrid scheduling. Four-quadrant operation switches between charge and discharge without delay.
Grid services and compliance
Can take part in ancillary services such as demand response, frequency regulation and reserve capacity. Compliant with GB/T 36276 and IEC 62619.
Remote operation
Remote management from mobile apps and PCs with one-click access to operating data, battery statistics and revenue reports, plus built-in predictive maintenance.
Applications
Technical Specifications
Open a section to see its details, or download the complete datasheet.
Standards & Certifications
Specifications are based on manufacturer test data and may change without notice. Standards and certifications refer to the manufacturer's test reports, available on request. The final configuration, performance and warranty terms are confirmed in each project proposal.
