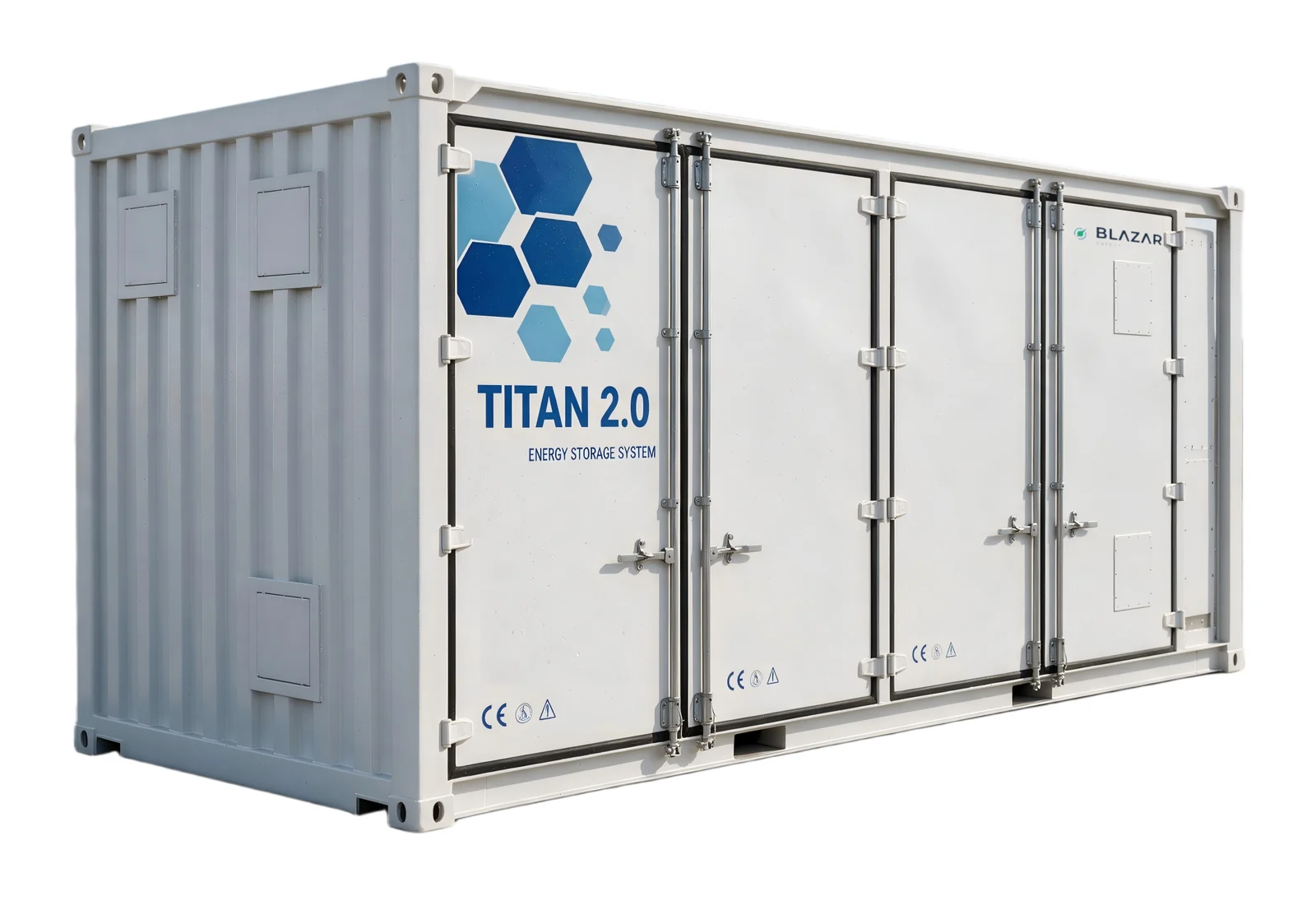

Titan 2.0
Liquid-cooled BESS container
A liquid-cooled 20 ft BESS container that delivers 6.25 MWh and 3.125 MW with 587 Ah LFP cells.
Why Titan 2.0
Titan 2.0 is a utility-scale, liquid-cooled LFP battery energy storage container that fits 6.25 MWh into a standard 20 ft footprint, with 3.125 MW rated power for a 2-hour discharge at full load. It is rated for at least 11,000 cycles and at least 94% round-trip efficiency, and integrates EMS, BMS, thermal management and fire protection with IEC 61850 communication. Reference architectures cover AC-coupled solar and wind plants, DC-coupled solar, AGC frequency regulation and on/off-grid switching for critical loads.
High energy density
6.25 MWh in a standard 20 ft container, 25% more capacity than the previous generation. The 52s × 8p × 8c configuration maximizes space use and reaches a gravimetric density of at least 130 Wh/kg.
Long cycle life
At least 11,000 cycles at 80% end of life and more than 20 years of service. Liquid thermal management keeps the cell temperature difference within 3 °C at ambient temperatures from -30 °C to 55 °C.
Plug-and-play deployment
A fully integrated container with EMS, BMS, thermal management and fire protection, tested at the factory. IEC 61850 communication for utility grid integration, scalable to 100 MWh and beyond.
Features
20+ years service life
Designed for more than 20 years of service, with a cycle life of at least 11,000 cycles.
IP55 protection
An IP55-rated enclosure, operating from -30 °C to 55 °C at altitudes up to 4,000 m.
AI-powered EMS
An integrated energy management system with AI-based control, communicating over CAN, Modbus, Ethernet and IEC 61850.
Multi-certified
Certifications cover IEC 62619 for cell safety, IEC 61850 for grid communication and UN 38.3 for transport safety, plus ISO 9001, ISO 14001 and ISO 45001 management systems.
Applications
Technical Specifications
Open a section to see its details, or download the complete datasheet.
Standards & Certifications
Specifications are based on manufacturer test data and may change without notice. Standards and certifications refer to the manufacturer's test reports, available on request. The final configuration, performance and warranty terms are confirmed in each project proposal.
You May Also Consider
Utility-scaleRock 1045
20 ft AC storage container
- Rated power
- 500 kW
- Rated capacity
- 1.045 MWh
- Max. charge/discharge rate
- 0.5C
- Design life
- 20 years
Utility-scalePivot
Modular DC-side BESS
- Rated energy
- 836 kWh to 4.18 MWh
- Operating power
- 200 to 1,000 kW
- Cell cycle life
- 8,000 cycles
- Corrosion grade
- C5
Utility-scaleTitan 5016
Containerized BESS
- Rated power
- 2.5 MW
- Rated capacity
- 5.016 MWh
- Cycle life
- 8,000 cycles
- System efficiency
- ≥95%
Interested in Titan 2.0?
Tell us about your site, your load and your goals. Our engineers will confirm the right configuration and send you a tailored proposal, including installation, operation and financing options.
Titan 2.0 datasheet (PDF)
